Share Charging team offers customized, end-to-end DC charging station solutions compliant with European standards.

Full-range DC fast charging stations from 40kW to 1.6MkW, supporting split-system architecture for high-traffic charging hubs.

CHADEMO-XX-Adapter

The CCS2-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

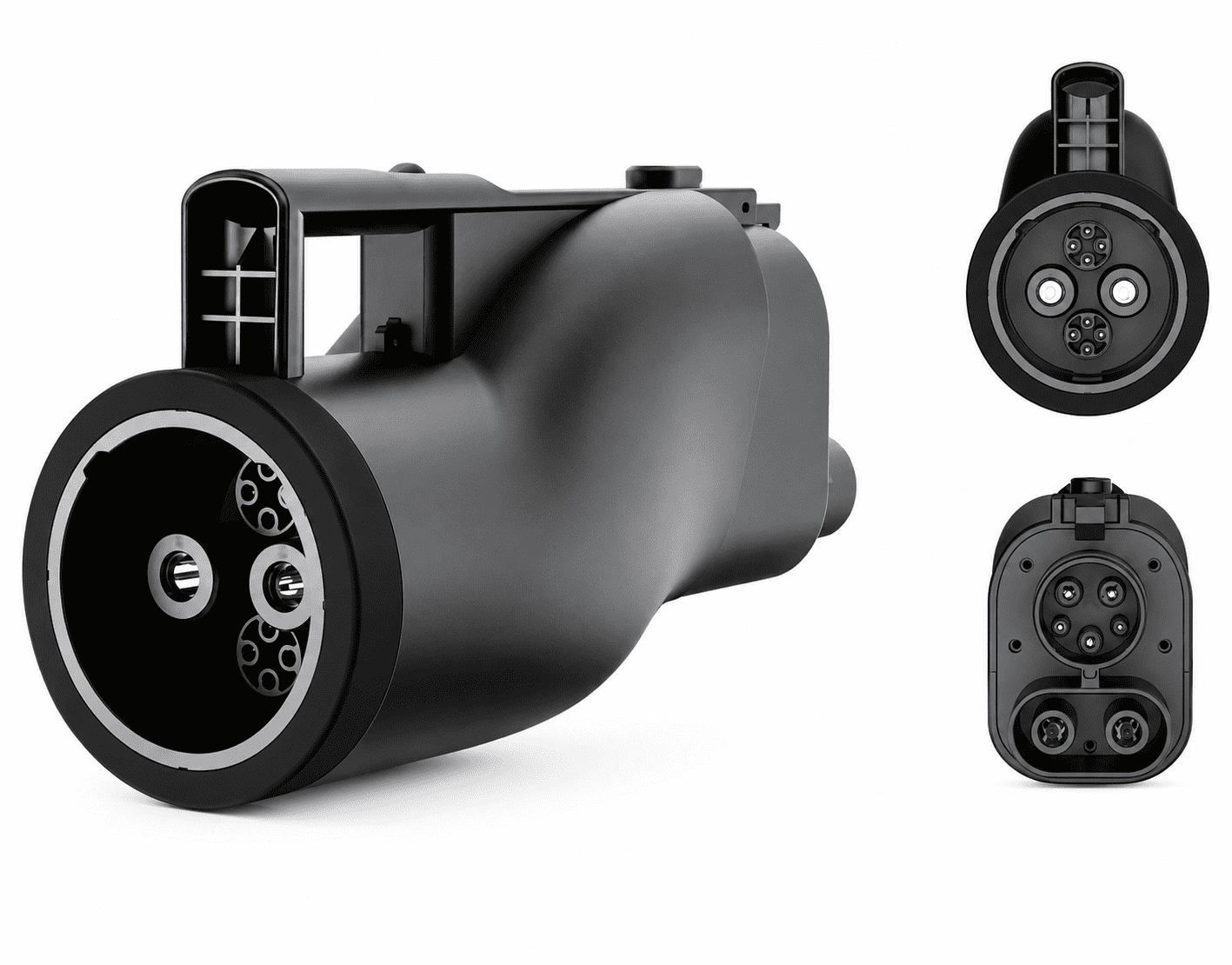

CHADEMO-CCS1 DC Adapter
Rated Current: 250A Max
Rated Voltage:1000V DCMax
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 1.51kg
Product Size: 255.2*97.67*142.77mm

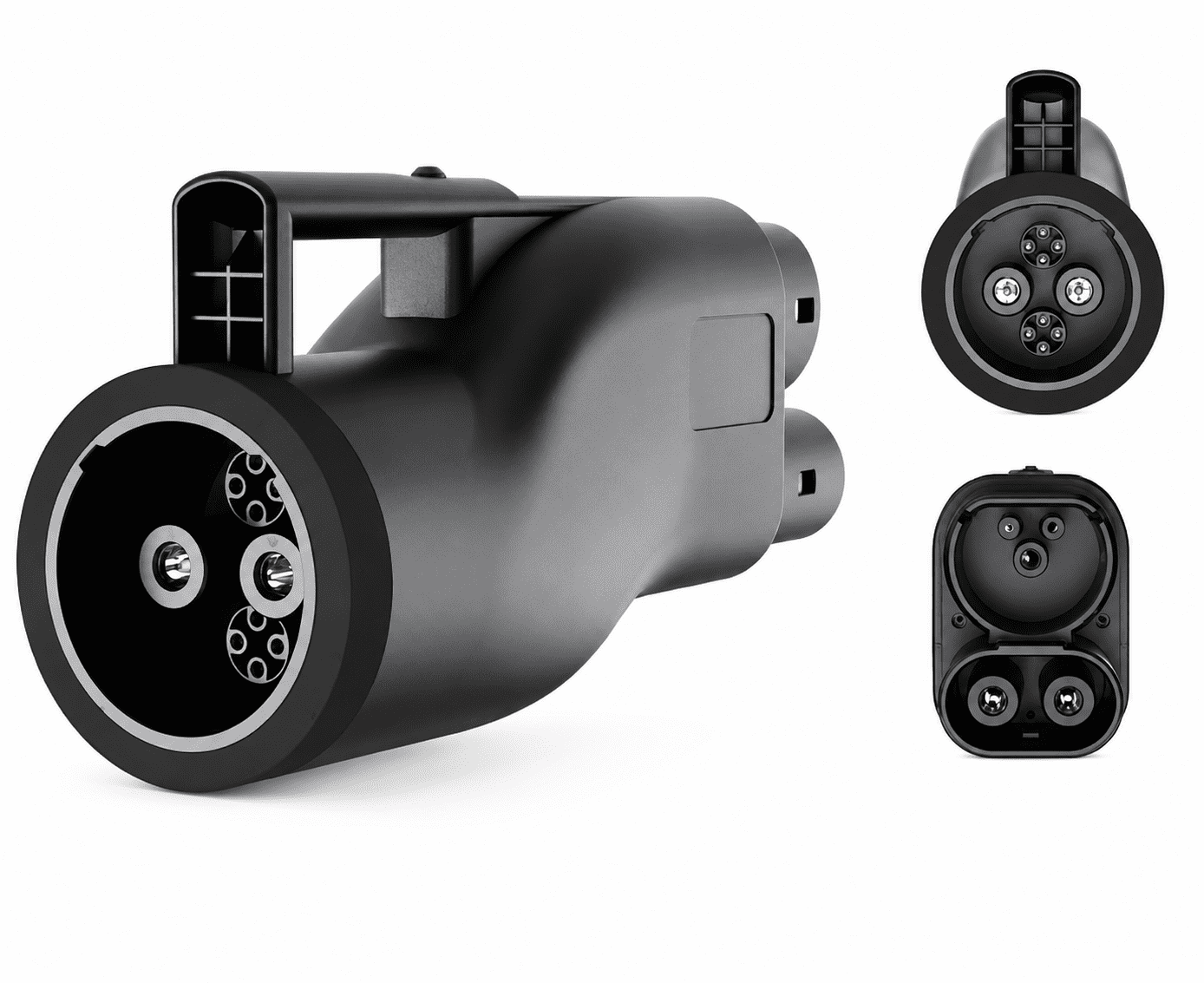

CHAdeMO-CCS2 DC Adapter
Rated Current: 250A Max
Rated Voltage:1000V DC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight:1.52kg
Product Size: 270.5*98*140.26mm

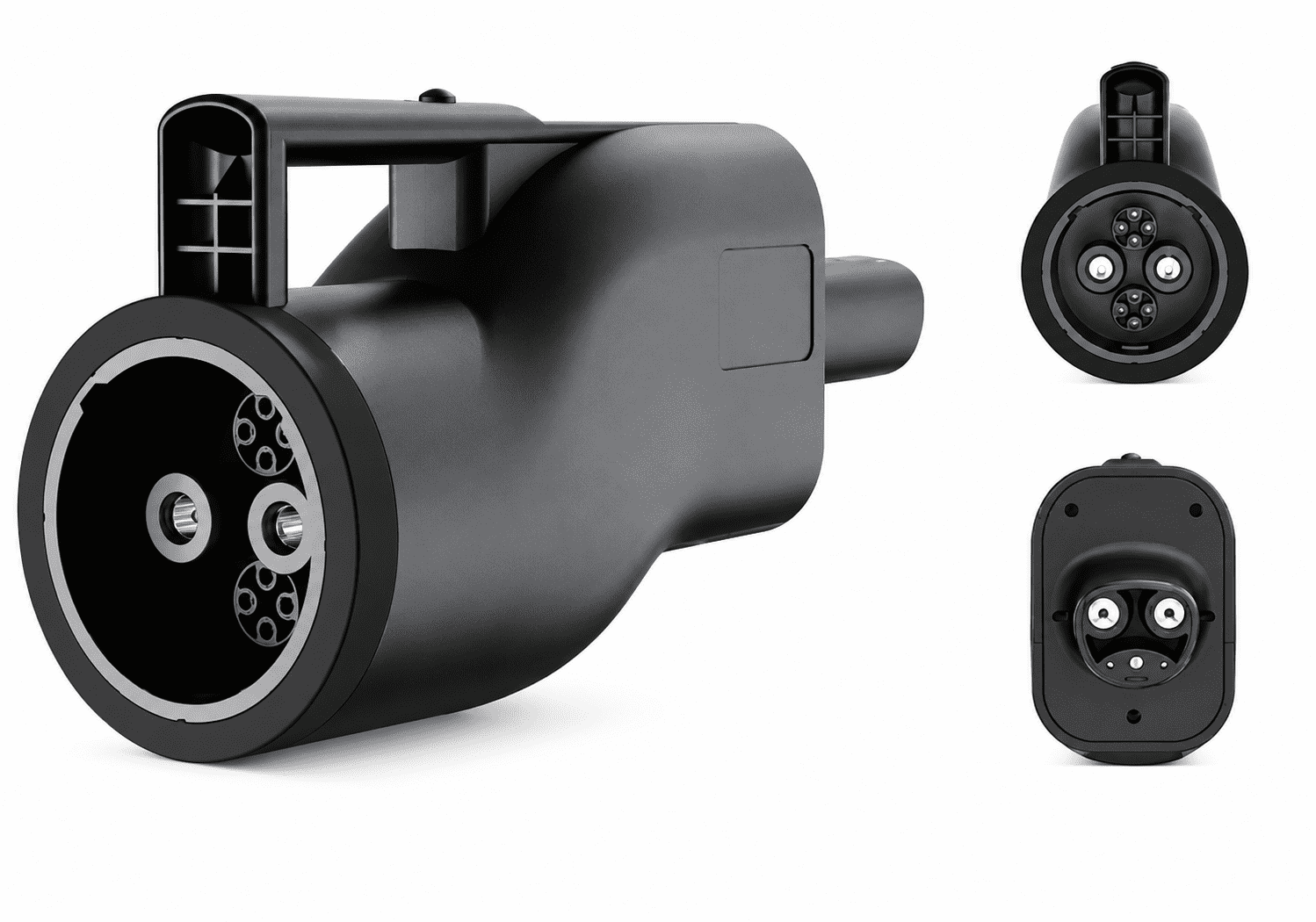

CHAdeMO-NACS DC Adapter

Rated Current:250A Max
Rated Voltage:1000V AC
Waterproof Grade:IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 1.75kg
Product Size:306*98*142.77mm
