Share Charging team offers customized, end-to-end DC charging station solutions compliant with European standards.

Full-range DC fast charging stations from 40kW to 1.6MkW, supporting split-system architecture for high-traffic charging hubs.

GB/T-Adapter

CCS2-NACS Charging Adapter Series

The CCS2-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

GB/T-CCS2 DC Adapter
Rated Current:250A Max
Rated Voltage:1000V DCMax
Waterproof Grade:IP54(after Mating)
Plastic Shell: Thermoplastic Plastic
Conductor:Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.5kg
Product Size:290.5*77*133.01mm
GB/T-CCS1 DC Adapter
Rated Current: 250A Max
Rated Voltage:1000V DCMax
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.43kg
Product Size:283.86*94.08*153.27mm
GB/T-NACS DC Adapter

Rated Current:250A Max
Rated Voltage:1000V AC
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.78kg
Product Size:305*98*142.77mm

GB/T-J1772 AC Adapter
Rated Current:32A
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 0.36kg
Product Size:159.94*69.48*69.13mm
GB/T-TYPE 2 AC Adapter
Rated Current:32A Max
Rated Voltage: 250VAC Max /380VAC
Waterproof Grade:IP54(After Mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.49kg
Product Size:176*69.5*62.65mm
GB/T-NACS AC Adapter
Rated Current:32A
Rated Voltage:240V AC
Waterproof Grade:IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Size:155.1*69.5*63.3mm

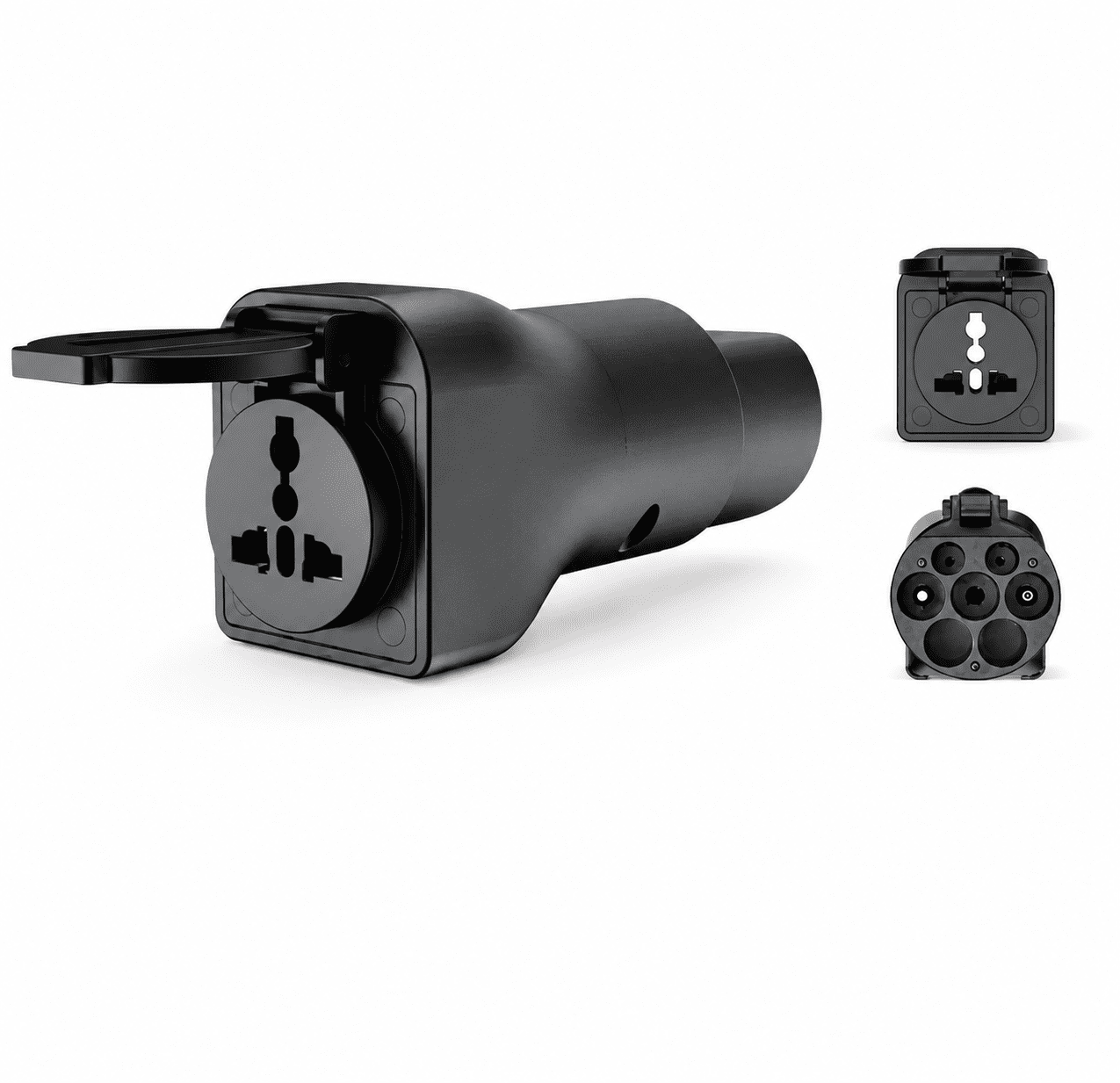

GB/T V2L Adapter
Rated Current: 16A Max
Rated Voltage:220VAC Max
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy,Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.3kg
Product Size:145.1*57.2*69.8mm
