Home › Products › AC Charging Stations
AC Charging
Stations
Reliable, safe and intelligent AC charging solutions
for home, commercial and public applications.
From 7 kW to 22 kW, supporting Type 2, OCPP 1.6J / 2.0.1
and smart charging features.
Safe & Reliable
Multiple protection
mechanisms
Smart Connectivity
OCPP 1.6J / 2.0.1
Ethernet / 4G / Wi-Fi
Flexible Installation
Wall-mounted or pedestal
Wide Applications
Home, Commercial, Public
Customized Design
Logo, UI, Functions
Global Compliance
CE, UKCA and more

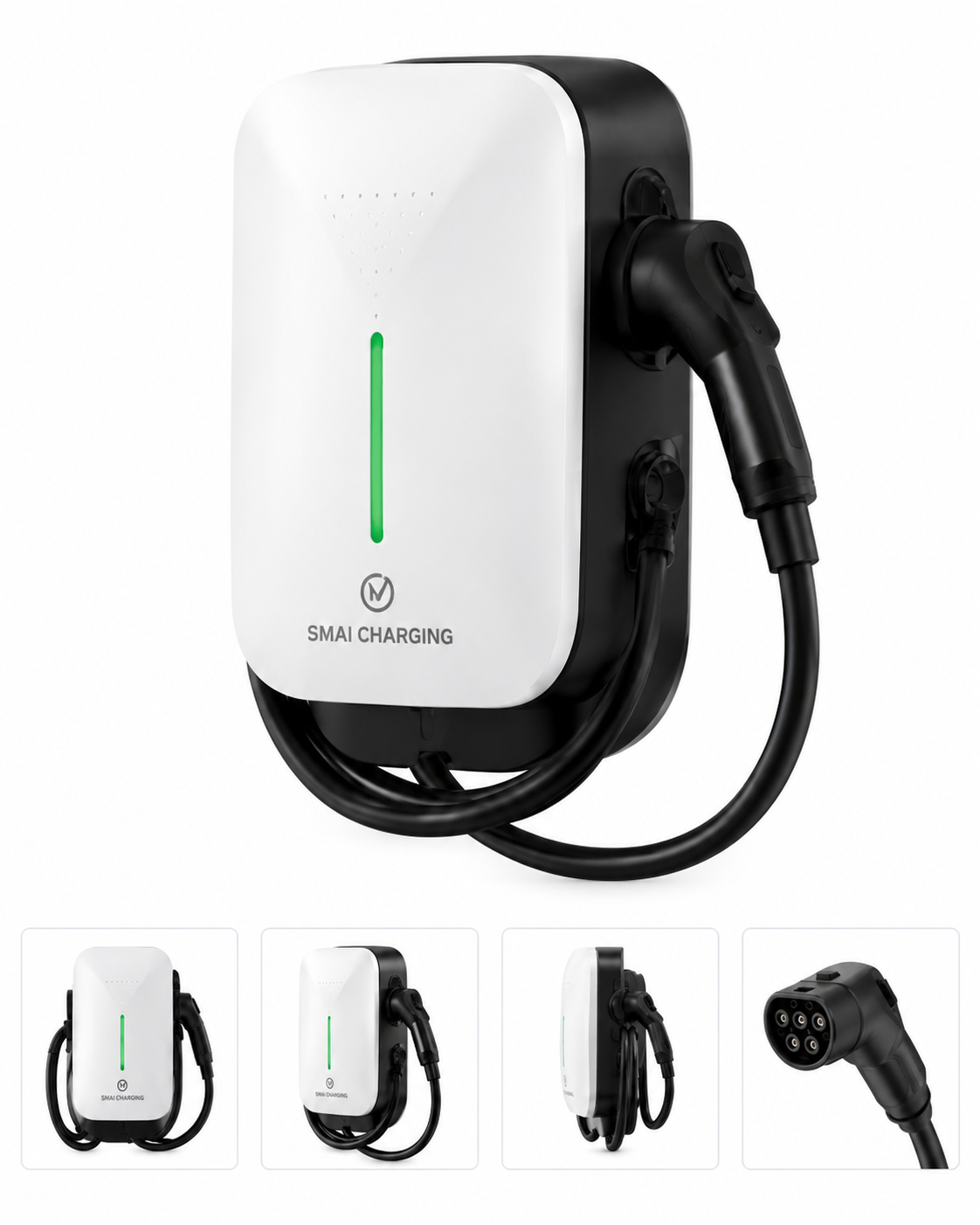

SC-AC001
AC Wallbox
Compact and stylish AC charger for home and small commercial use. Supporting smart charging, App control and multiple communication options.
● 7 kW / 11 kW / 22 kW
● Type 2 socket or cable
● OCPP 1.6J / 2.0.1
● Wi-Fi / 4G / Ethernet
● RFID / APP (optional)
Technical Specifications
Model
SC-AC001
Rated Power
7 kW / 11 kW / 22 kW
Input Voltage
230 V / 400 V (±10%)
Output Current
32 A (7 kW), 16 A (11 kW), 32 A (22 kW)
Charging Interface
Type 2 socket or Type 2 cable (5 m)
Charging Mode
Mode 3 (IEC 61851-1)
Communication
OCPP 1.6J / 2.0.1
Network
Wi-Fi / 4G / Ethernet
User Authentication
RFID / APP / Plug & Charge (optional)
Enclosure Protection
IP65 / IK10
Operating Temperature
-30°C ~ +55°C
Installation
Wall-mounted
Certification
CE, UKCA (other certifications on request)
SC-AC002
AC Smart Charger
Intelligent AC charger with 4.3" screen, multiple payment options and advanced smart charging functions. Ideal for commercial and residential applications.
● 7 kW / 11 kW / 22 kW
● Type 2 socket or cable
● 4.3" LCD display
● OCPP 1.6J / 2.0.1
● Wi-Fi / 4G / Ethernet / Bluetooth
● RFID / APP / Plug & Charge (optional)
● Dynamic load management (optional)
Technical Specifications
Model
SC-AC002
Rated Power
7 kW / 11 kW / 22 kW
Input Voltage
230 V / 400 V (±10%)
Output Current
32 A (7 kW), 16 A (11 kW), 32 A (22 kW)
Display
4.3" LCD screen
Charging Interface
Type 2 socket or Type 2 cable (5 m)
Charging Mode
Mode 3 (IEC 61851-1)
Communication
OCPP 1.6J / 2.0.1
Network
Wi-Fi / 4G / Ethernet / Bluetooth
User Authentication
RFID / APP / Plug & Charge (optional)
Smart Charging
Scheduled charging, load balancing
Enclosure Protection
IP65 / IK10
Operating Temperature
-30°C ~ +55°C
Installation
Wall-mounted or pedestal
Certification
CE, UKCA (other certifications on request)

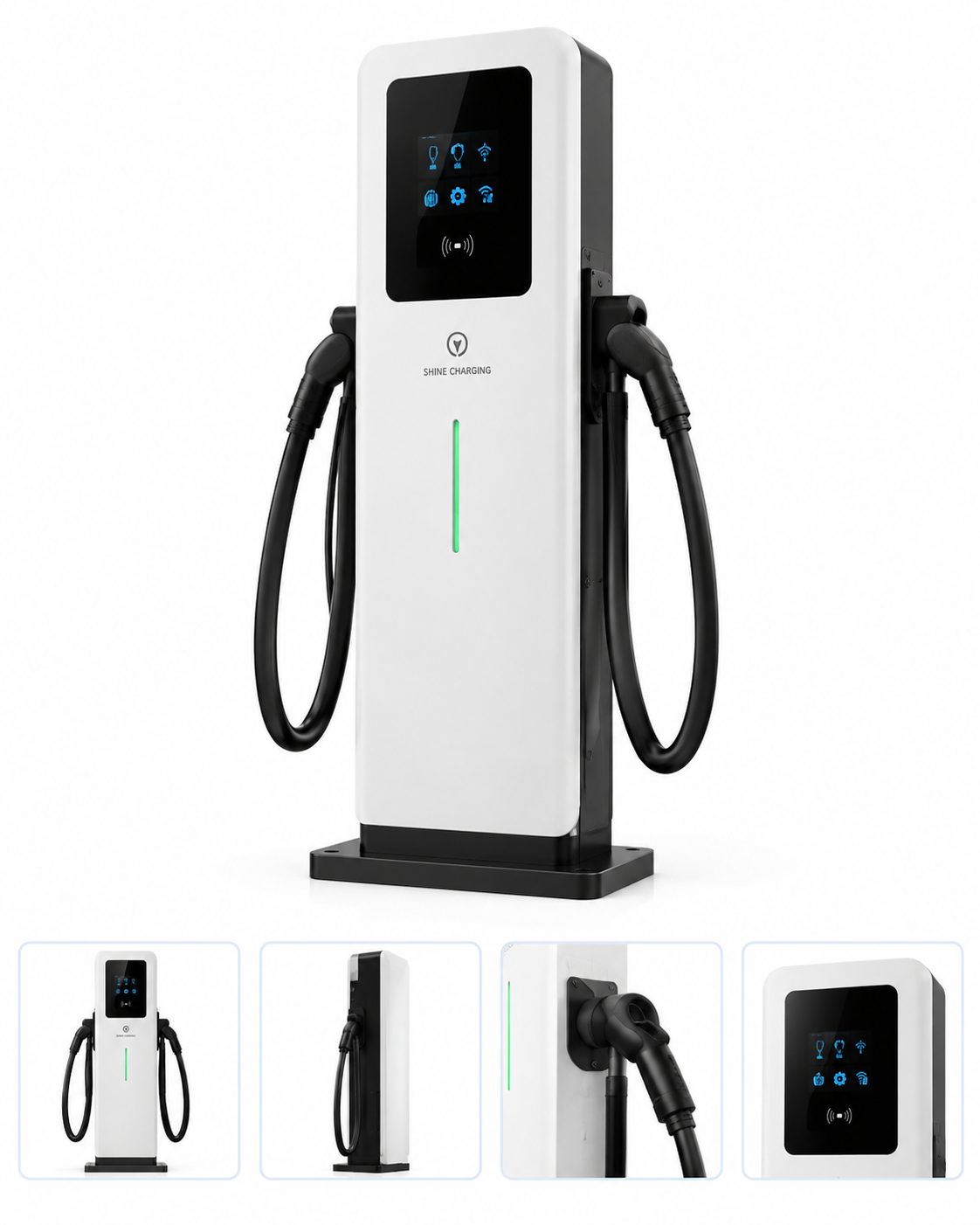

SC-AC003
AC Pedestal Charger
Intelligent pedestal charger for public and commercial use. With large screen, multiple payment options and OCPP 1.6J / 2.0.1 back-end applications.
● 7 kW / 11 kW / 22 kW (single or dual)
● Type 2 socket or cable
● 7" LCD display
● OCPP 1.6J / 2.0.1
● 4G / Ethernet / Wi-Fi
● Commercial & public use
Technical Specifications
Model
SC-AC003
Rated Power
7 kW / 11 kW / 22 kW (single/dual)
Input Voltage
230 V / 400 V (±10%)
Output Current
32 A per socket (max)
Display
7" LCD screen
Charging Interface
Type 2 socket × 2 or cable × 2
Charging Mode
Mode 3 (IEC 61851-1)
Communication
OCPP 1.6J / 2.0.1
Network
4G / Ethernet / Wi-Fi
User Authentication
RFID / APP / Plug & Charge (optional)
Smart Charging
Dynamic load management, scheduled charging
Enclosure Protection
IP54 / IK10
Operating Temperature
-30°C ~ +55°C
Installation
Pedestal
Certification
CE, UKCA (other certifications on request)

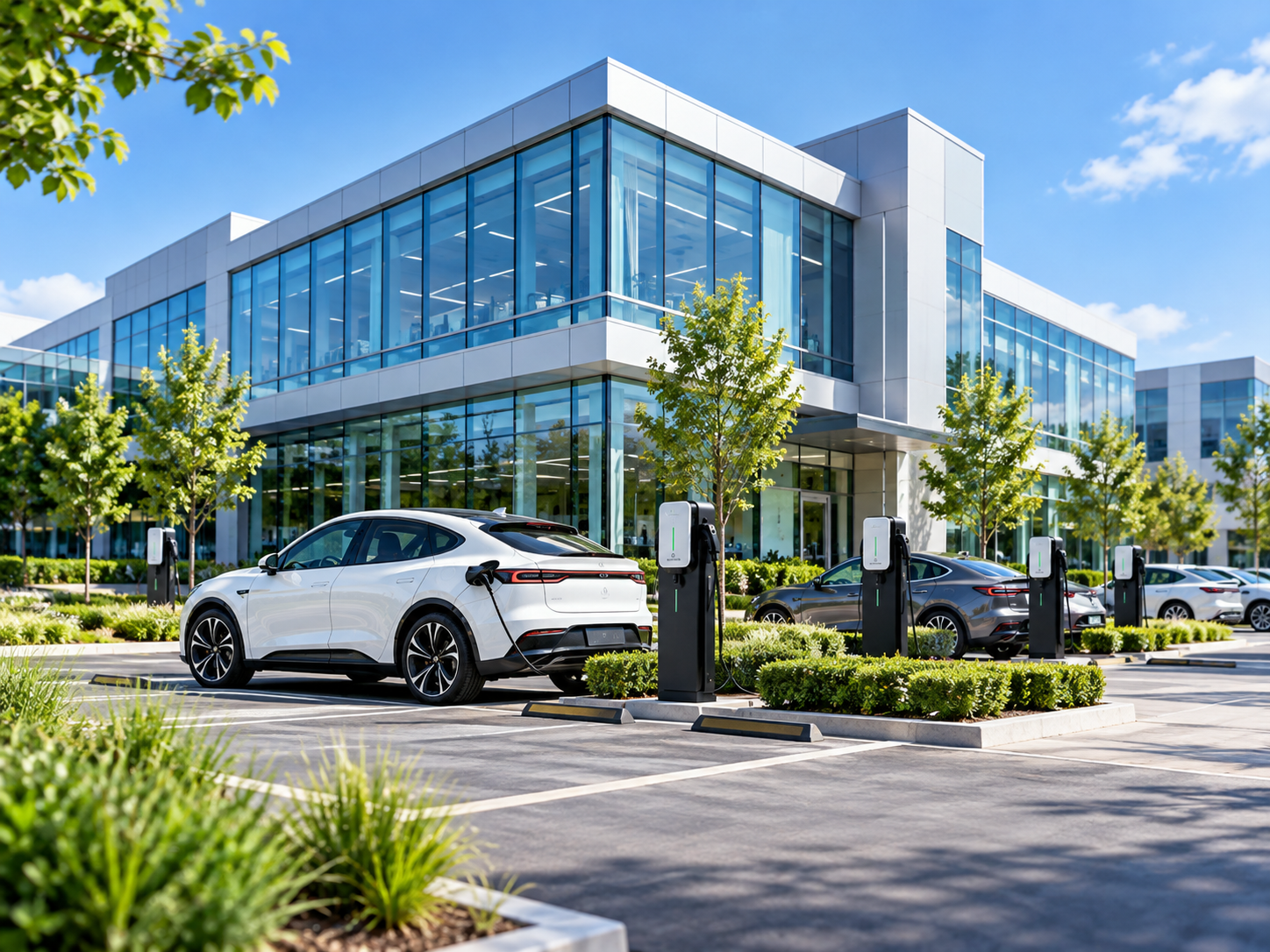

Suitable for Various Scenarios
Our AC charging stations are widely used in residential, commercial, public and fleet environments.
Residential
Home charging solution
with smart control.
Commercial
Office buildings, shopping malls,
hotels and parking lots.
Public
Public charging stations,
city infrastructure.
Fleet
Company and fleet charging
management.
Compare AC Charging Stations
Wallbox
Smart Charger
Pedestal Charger
Rated Power
7 / 11 / 22 kW
7 / 11 / 22 kW
7 / 11 / 22 kW
Input Voltage
230 V / 400 V (±10%)
230 V / 400 V (±10%)
230 V / 400 V (±10%)
Output Current
32 A (max)
32 A (max)
32 A (max)
Charging Interface
Type 2 socket or cable
Type 2 socket or cable
Type 2 socket × 2 or cable × 2
Display
—
4.3" LCD
7" LCD
Communication
OCPP 1.6J / 2.0.1
OCPP 1.6J / 2.0.1
OCPP 1.6J / 2.0.1
Network
Wi-Fi / 4G / Ethernet
Wi-Fi / 4G / Ethernet / Bluetooth
4G / Ethernet / Wi-Fi
User Authentication
RFID / APP (optional)
RFID / APP / Plug & Charge (optional)
RFID / APP / Plug & Charge (optional)
Installation
Wall-mounted
Wall-mounted or pedestal
Pedestal
Protection Rating
IP65 / IK10
IP65 / IK10
IP54 / IK10
Application
Home / Small commercial
Residential / Commercial
Commercial / Public / Fleet
AC Charging Project
Whether you need standard products or customized solutions, Share Charging provides reliable AC charging stations and professional support for your project.
