CCS2 Charging
Adapters
CCS2 to NACS, CCS1, GB/T, CHAdeMO and Type 2 adapters.
Explore nine adapter options for different charging interfaces.
NACS · CCS1 · GB/T · CHAdeMO · Type 2
DC and selected DC+AC models
Silver-plated copper alloy
IP54 after mating
-30°C to +50°C

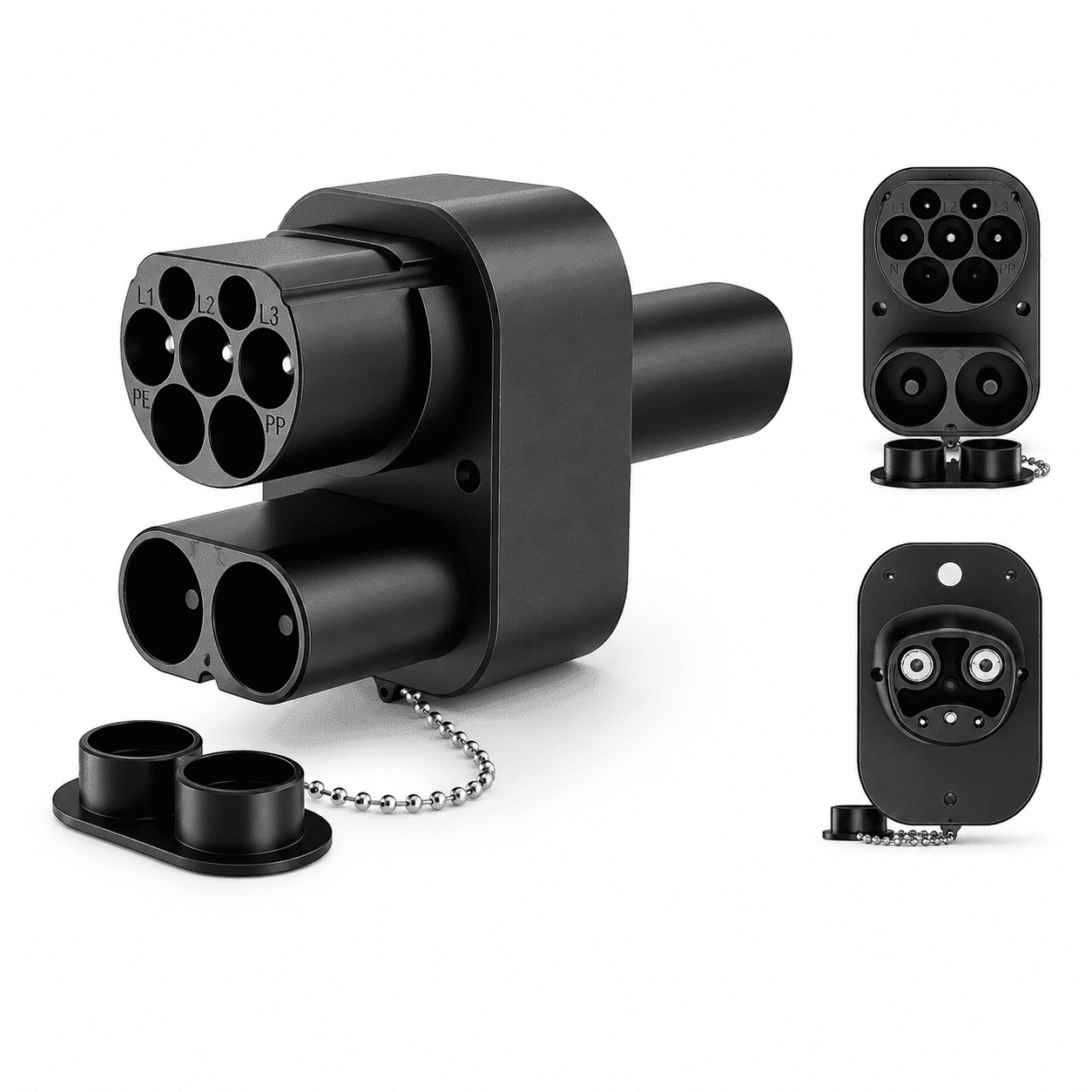

CCS2-NACS / CCS1 / GB/T / CHAdeMO Adapter Series
The CCS2-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.
✓ Nine models from the original CCS2 DC Adapter product page
✓ NACS, CHAdeMO, Type 2, GB/T and CCS1 configurations
✓ Locking and DC+AC variants available for selected models
✓ Thermoplastic plastic shell and silver-plated copper alloy conductor
✓ IP54 (after mating) and -30°C to +50°C operating temperature
9 CCS2 Charging Adapter Models
CCS2-NACS DC Adapter with Lock
- Rated Current: 200A DC
- Rated Voltage: 1000V DC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Size: 139.95 × 62.25 × 92 mm

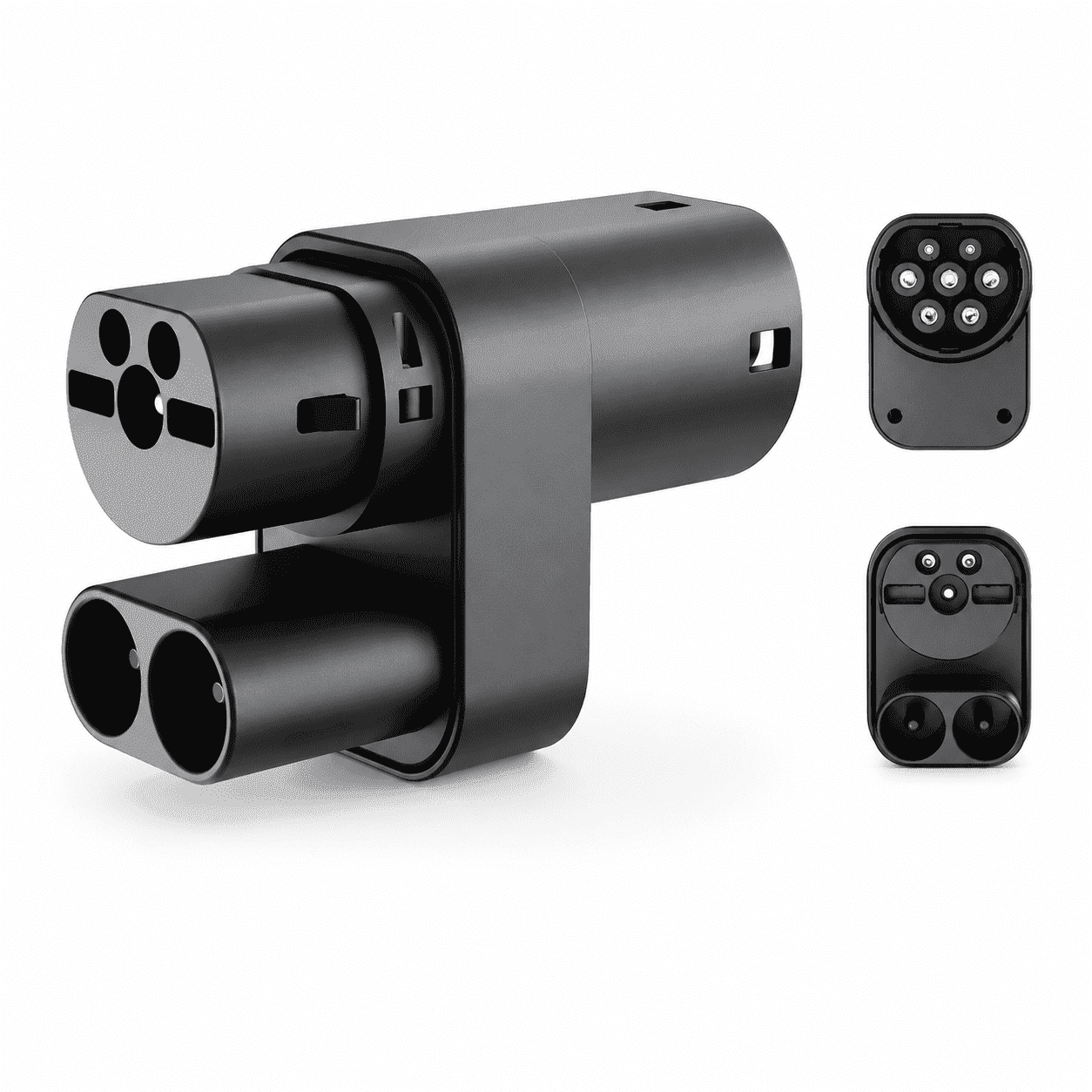

CCS2-NACS DC Adapter
- Rated Current: 250A DC
- Rated Voltage: 1000V DC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.87 kg
- Product Size: 150.15 × 69.6 × 100.22 mm

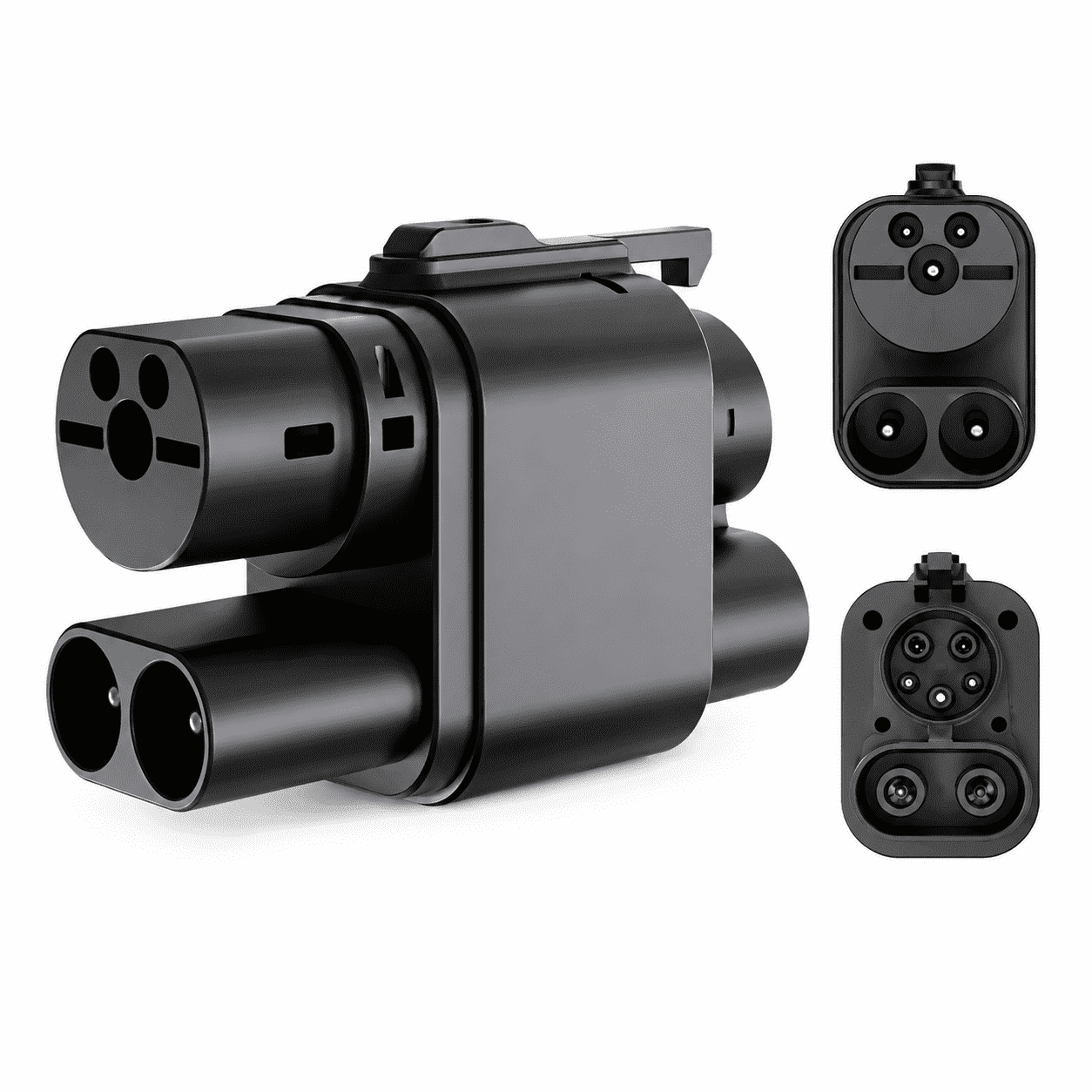

CCS2-NACS DC+AC Adapter
- Rated Current: 250A DC / 80A AC
- Rated Voltage: 1000V DC / 250V AC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.06 kg
- Product Size: 150.15 × 69.6 × 100.22 mm

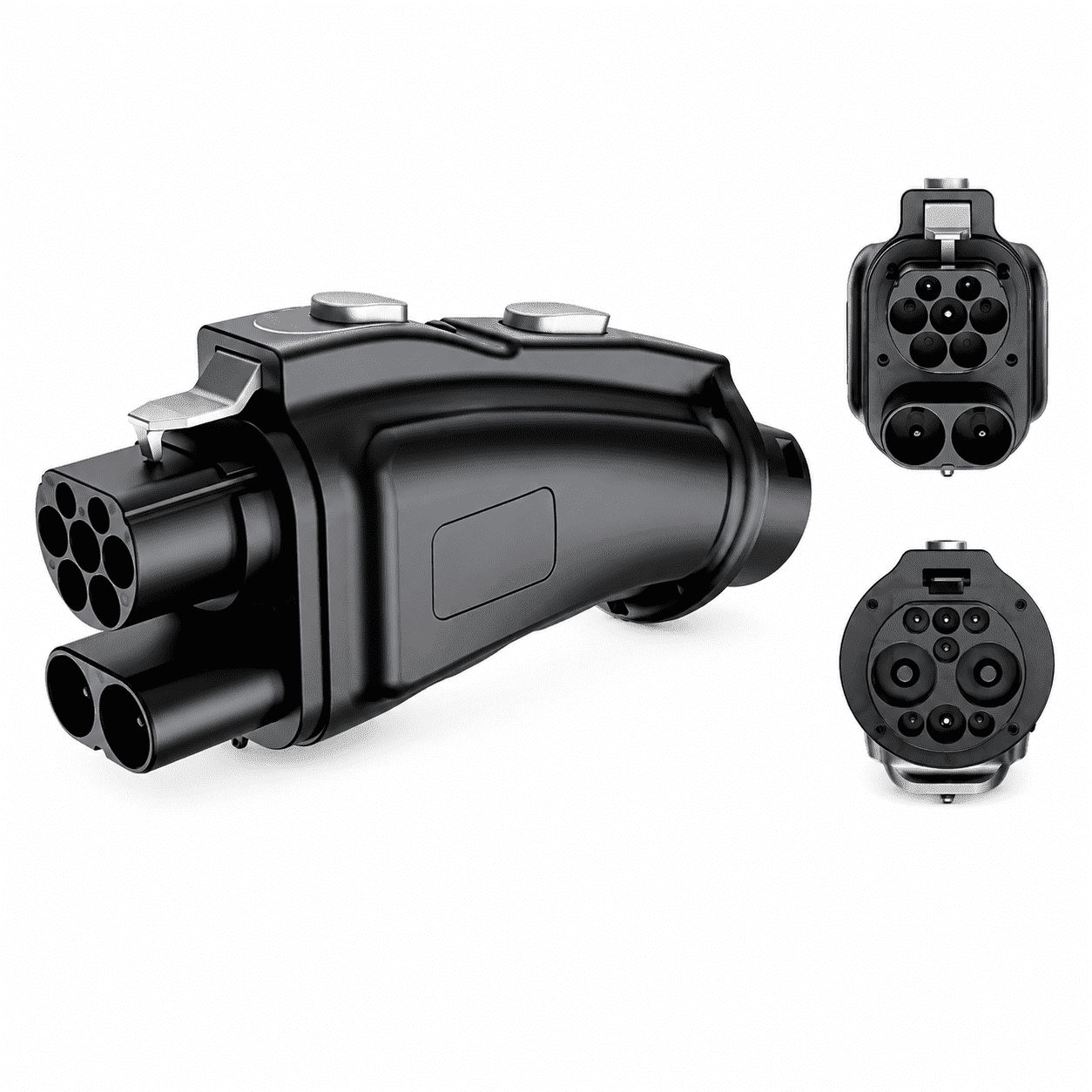

CCS2-CHAdeMO DC Adapter
- Rated Current: 250A Max
- Rated Voltage: 1000V DC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.88 kg
- Product Size: 301.43 × 95 × 150.03 mm

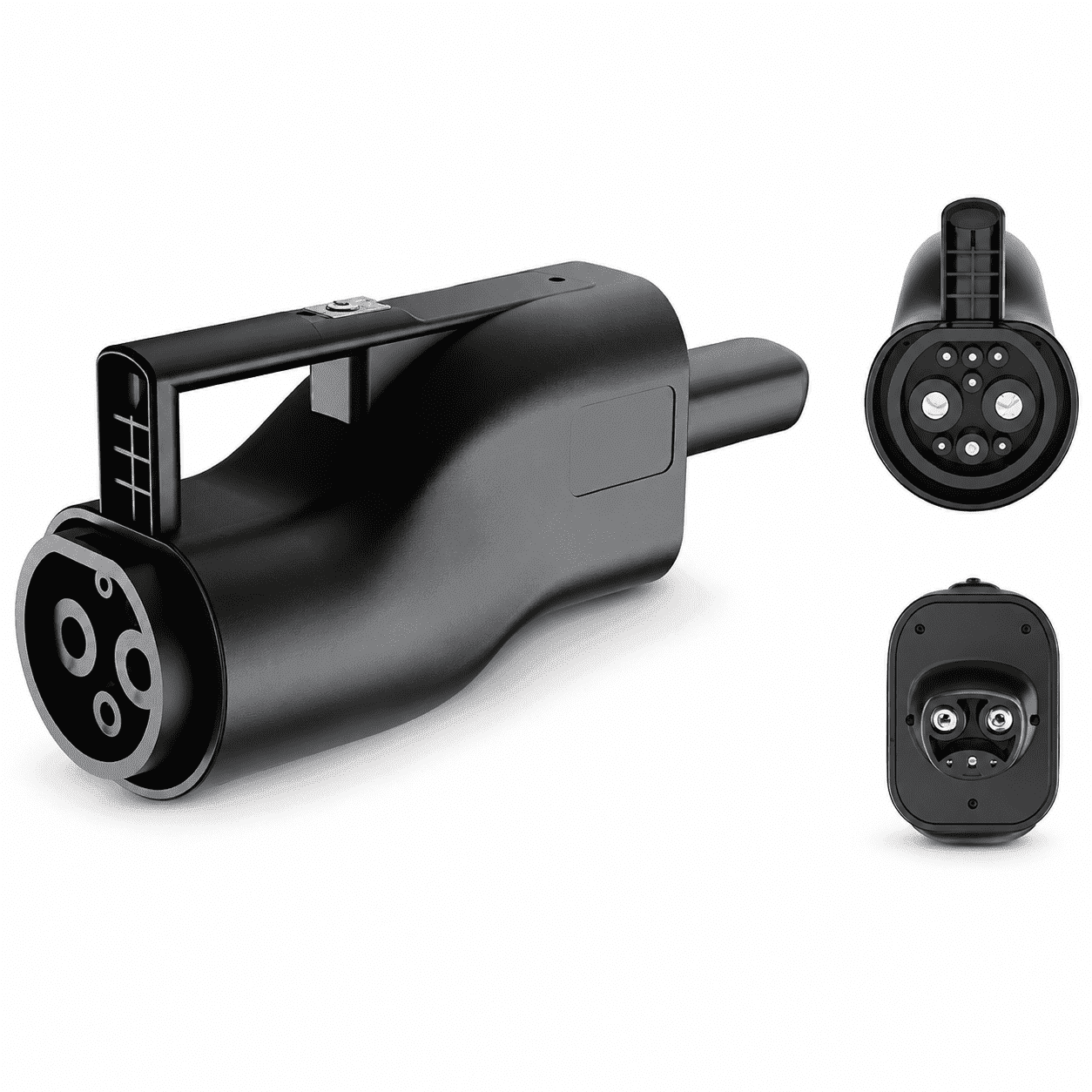

CCS2-TYPE 2 DC Adapter
- Rated Current: 210A Max
- Rated Voltage: 410V DC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.73 kg
- Product Size: 135.23 × 67.05 × 98.08 mm
CCS2-NACS DC+AC Cybertruck Adapter
- Rated Current: 250A DC / 80A AC
- Rated Voltage: 1000V DC / 250V AC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.85 kg
- Product Size: 172.15 × 69.6 × 106.63 mm

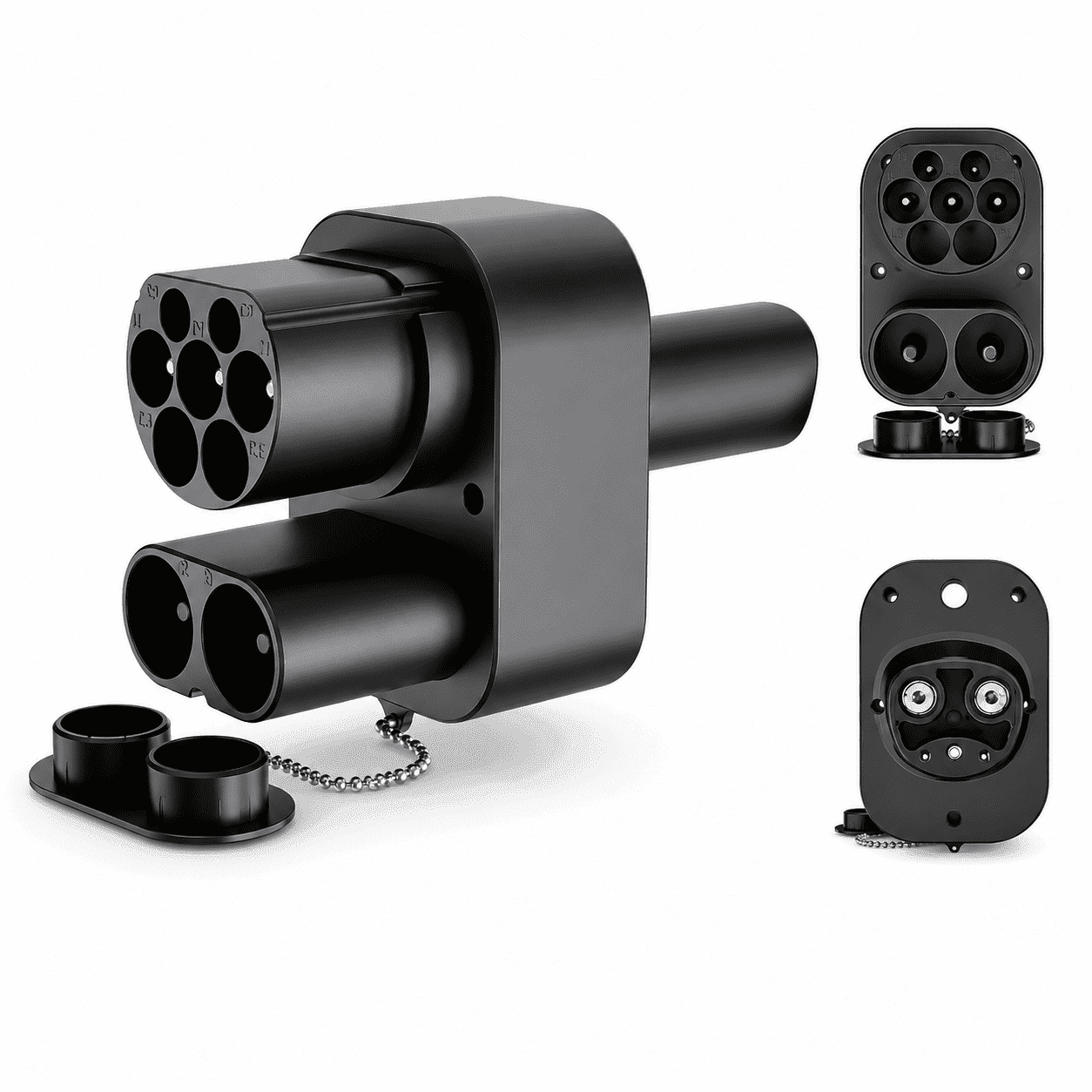

CCS2-GBT DC Adapter
- Rated Current: 300A Max
- Rated Voltage: 1000V DC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.88 kg
- Product Size: 294.39 × 95.48 × 145.39 mm

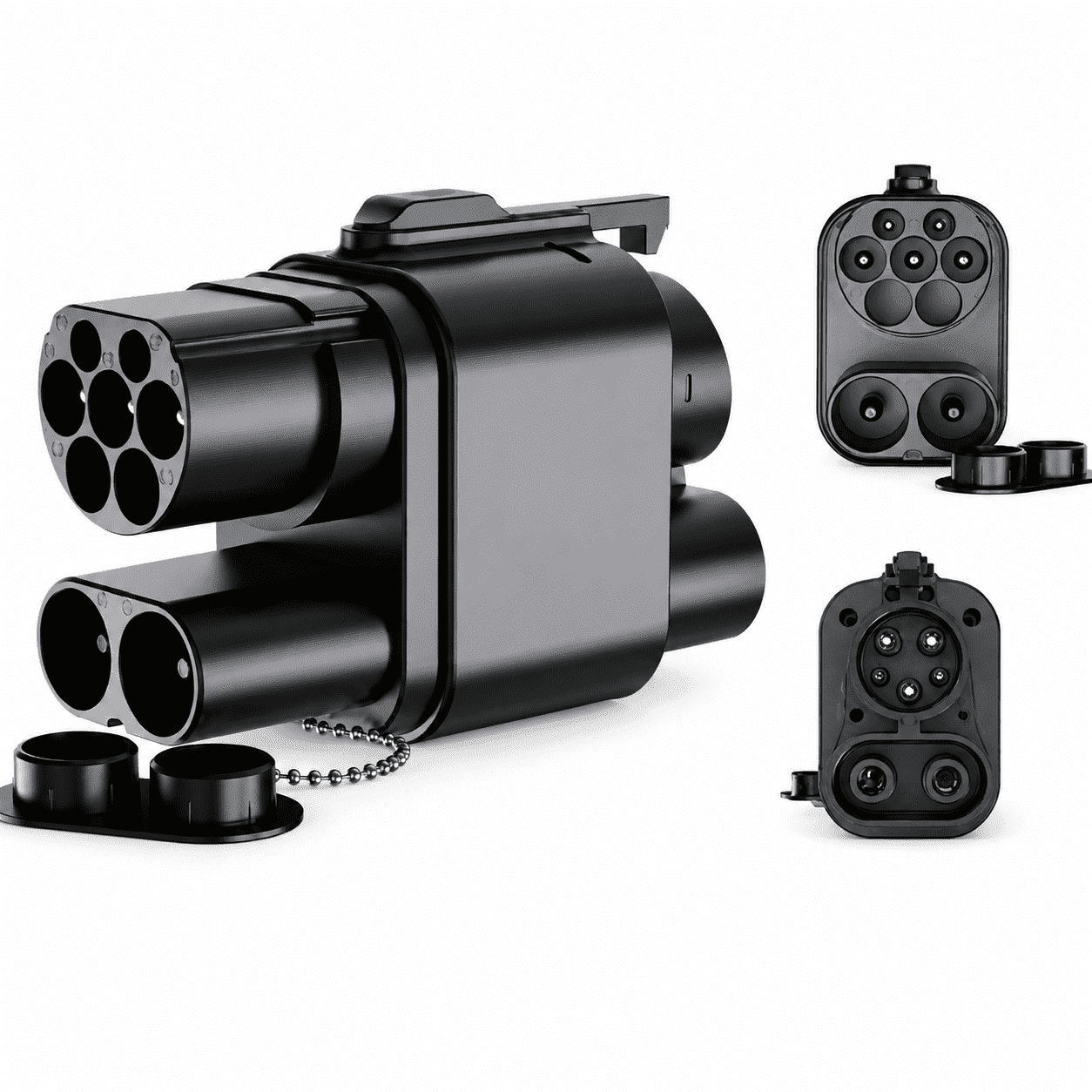

CCS2-CCS1 DC+AC Adapter
- Rated Current: 250A DC / 80A AC
- Rated Voltage: 1000V DC / 250V AC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.85 kg
- Product Size: 149.85 × 68.25 × 109.23 mm
CCS2-CCS1 DC Adapter with lock
- Rated Current: 250A DC
- Rated Voltage: 1000V DC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.73 kg
- Product Size: 149.85 × 68.25 × 103.2 mm
Compare All 9 CCS2 Adapter Models
Model
NACS DC with Lock
NACS DC
NACS DC+AC
CHAdeMO DC
TYPE 2 DC
Rated Current
200A DC
250A DC
250A DC / 80A AC
250A Max
210A Max
Rated Voltage
1000V DC
1000V DC
1000V DC / 250V AC Max
1000V DC Max
410V DC
Waterproof Grade
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
Plastic Shell
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Conductor
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Working Temperature
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
Net Weight
Not specified
0.87 kg
1.06 kg
1.88 kg
0.73 kg
Product Dimensions
139.95 × 62.25 × 92 mm
150.15 × 69.6 × 100.22 mm
150.15 × 69.6 × 100.22 mm
301.43 × 95 × 150.03 mm
135.23 × 67.05 × 98.08 mm
Model
NACS DC+AC Cybertruck
GB/T DC
CCS1 DC+AC
CCS1 DC with Lock
Rated Current
250A DC / 80A AC
300A Max
250A DC / 80A AC
250A DC
Rated Voltage
1000V DC / 250V AC Max
1000V DC
1000V DC / 250V AC Max
1000V DC
Waterproof Grade
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
Plastic Shell
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Conductor
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Working Temperature
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
Net Weight
0.85 kg
1.88 kg
0.85 kg
0.73 kg
Product Dimensions
172.15 × 69.6 × 106.63 mm
294.39 × 95.48 × 145.39 mm
149.85 × 68.25 × 109.23 mm
149.85 × 68.25 × 103.2 mm
Suitable for Various Charging Scenarios

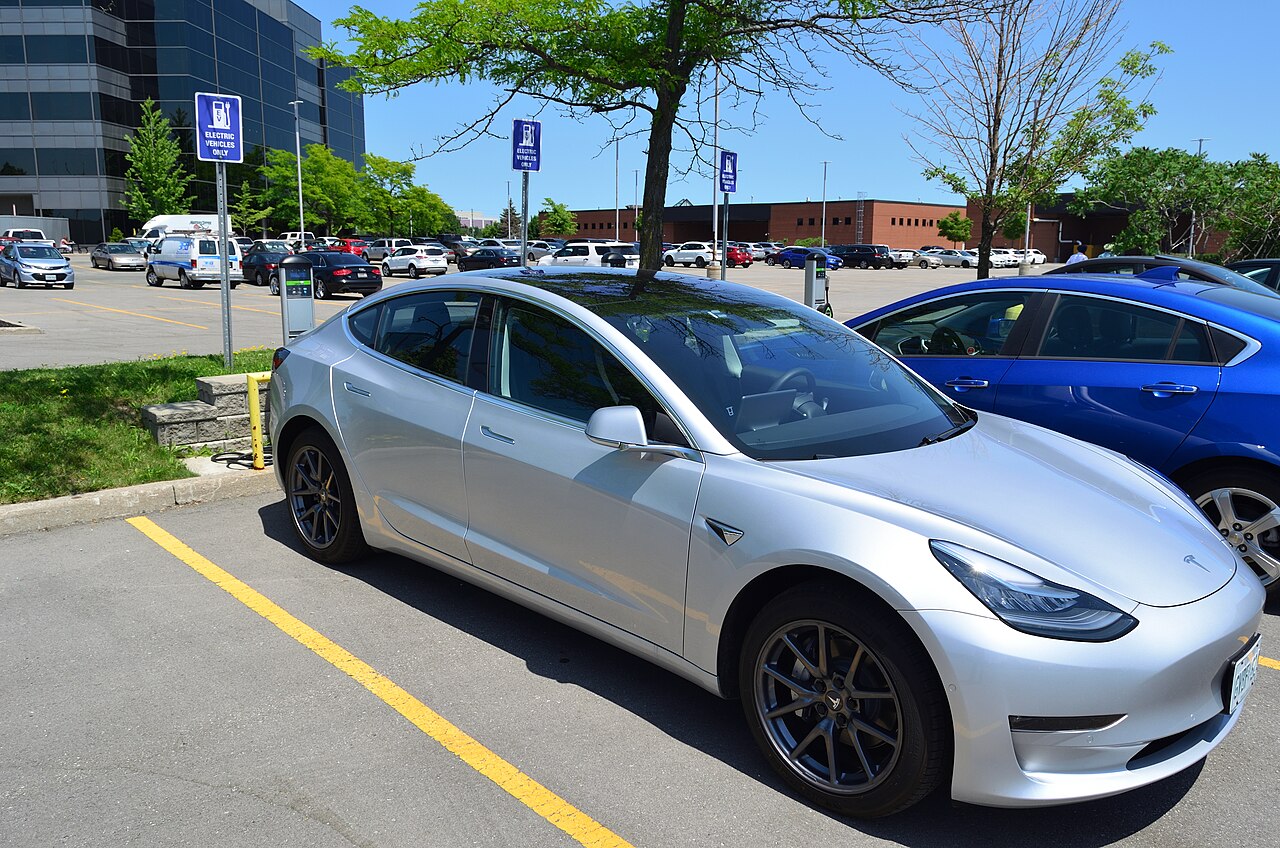

Tesla / NACS Vehicles

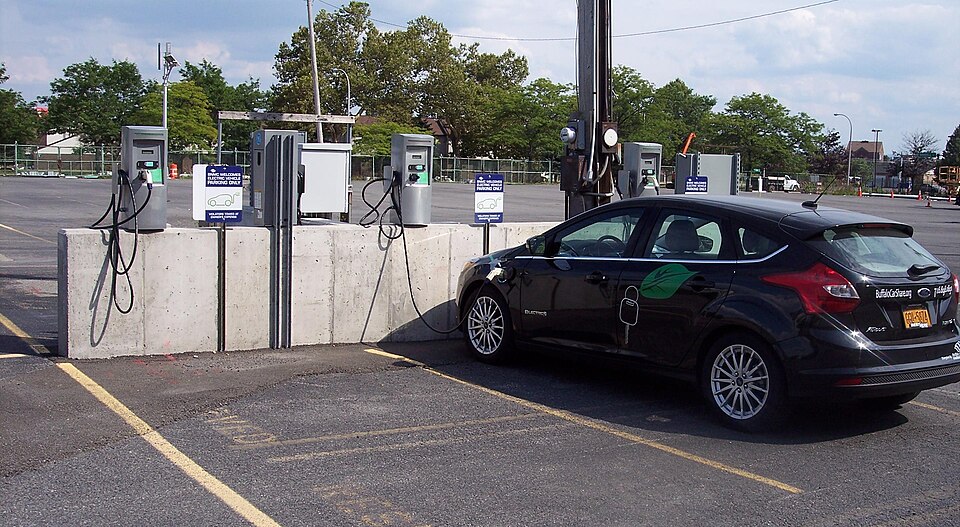

Public Charging Stations
Fleet & Commercial Use
Cross-Standard Compatibility
Custom Charging Adapter Solutions
Frequently Asked Questions
Adapter configurations are available for NACS, CCS1, CCS2, GB/T and CHAdeMO. Actual compatibility depends on the specific adapter model and the vehicle and charger interfaces.
Selected models support both DC and AC charging; other models are designed for DC only. Please check the exact model specification before ordering.
The products use thermoplastic housings and copper alloy contacts with a silver-plated surface, according to the product specifications. Match electrical ratings to your vehicle and charging equipment.
IP54 indicates protection against limited dust ingress and water splashes under the applicable test conditions. Product specifications state IP54 after mating.
Yes. Contact us to discuss OEM/ODM project requirements, adapter configuration and branding options.
Typical applications include compatible EV charging at homes, public charging stations, commercial fleets and cross-standard charging infrastructure.
