GB/T Charging Adapters – DC, AC & V2L Series
Explore seven GB/T charging adapter configurations from Share Charging, including GB/T to CCS2, CCS1, NACS, J1772 and Type 2, plus a GB/T vehicle-to-load (V2L) adapter. Refer to the specific model ratings for DC, AC and V2L applications.
3 DC · 3 AC · 1 V2L
CCS2 · CCS1 · NACS · J1772 · Type 2
Silver-plated copper alloy
IP54 after mating
-30°C to +50°C
GB/T Adapter Series – DC, AC and V2L Interfaces
Seven GB/T adapter products are presented on the source page, spanning DC, AC and vehicle-to-load variants. Select the required interface and check the rated current, voltage and dimensions of each adapter. The source page’s introductory paragraph uses the title “CCS2-NACS Charging Adapter Series” and refers to CCS1 charging infrastructure; that wording requires review before publication.
✓ 7 models listed on the original GB/T adapter page
✓ GB/T to CCS2, CCS1, NACS, J1772 and Type 2 interfaces
✓ DC charging, AC charging and V2L categories
✓ Thermoplastic shell and silver-plated copper alloy conductor
✓ IP54 after mating; operating temperature from -30°C to +50°C
7 GB/T Adapter Models – DC, AC and V2L

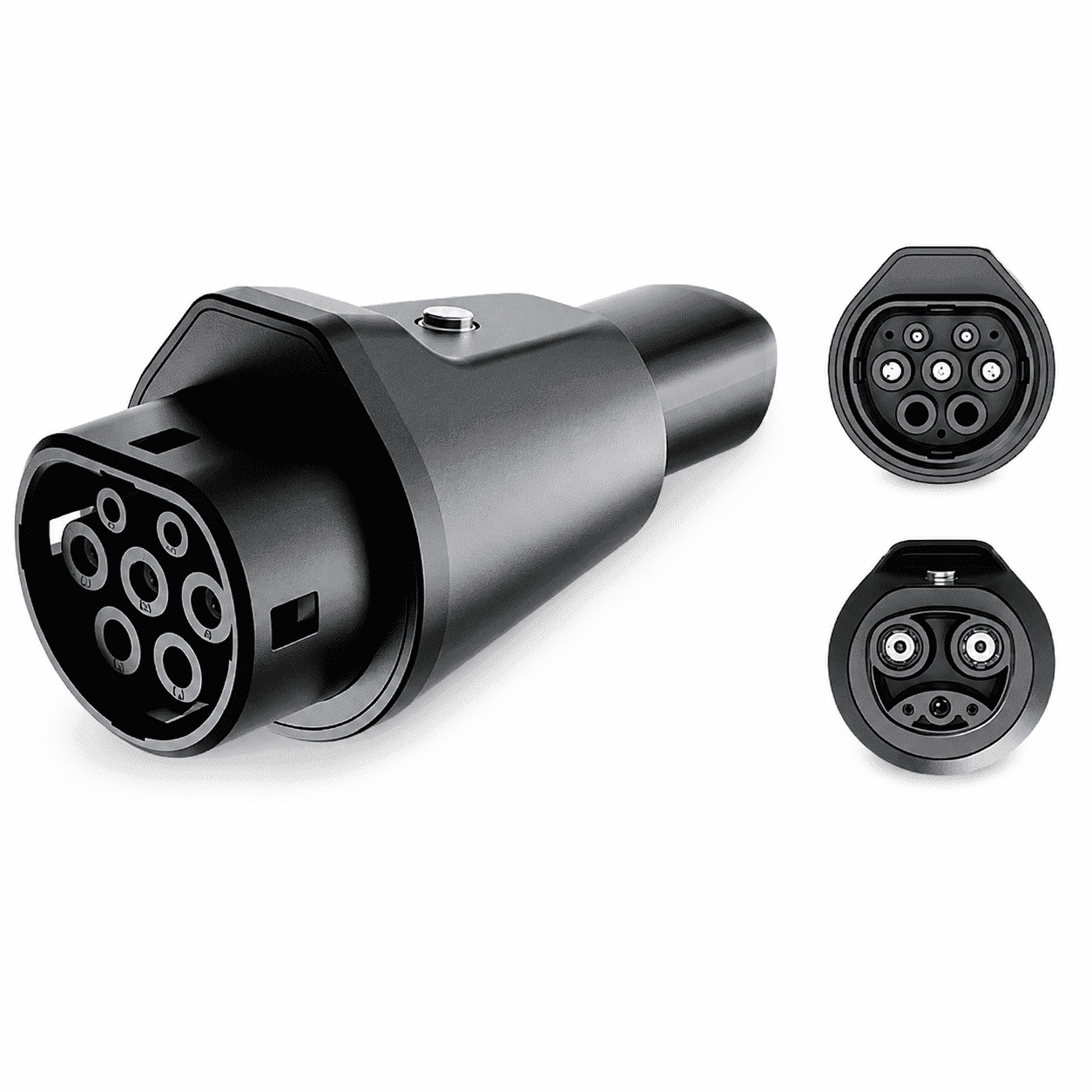

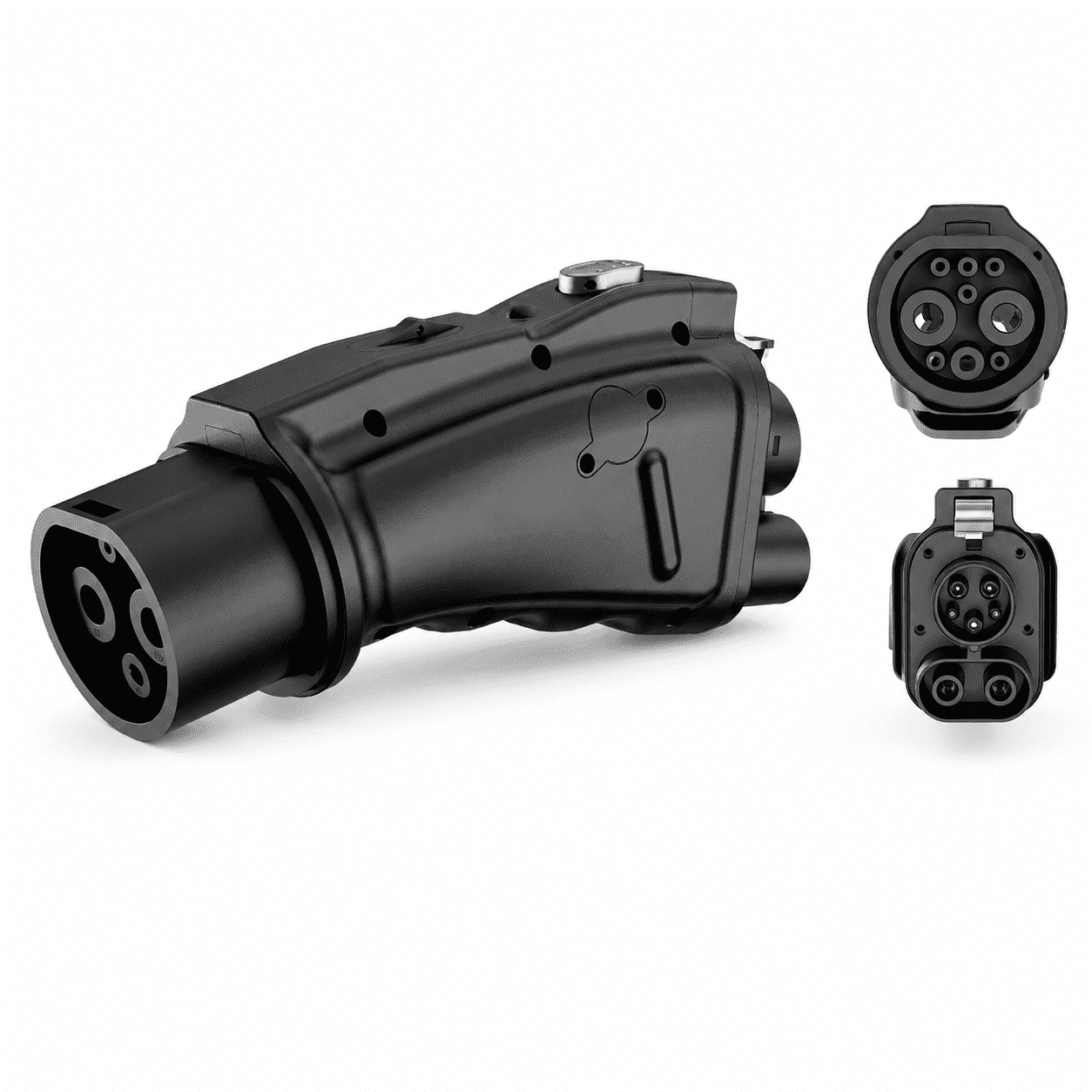

GB/T-CCS2 DC Adapter
- Rated Current: 250A Max
- Rated Voltage: 1000V DC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.5 kg
- Product Size: 290.5 × 77 × 133.01 mm

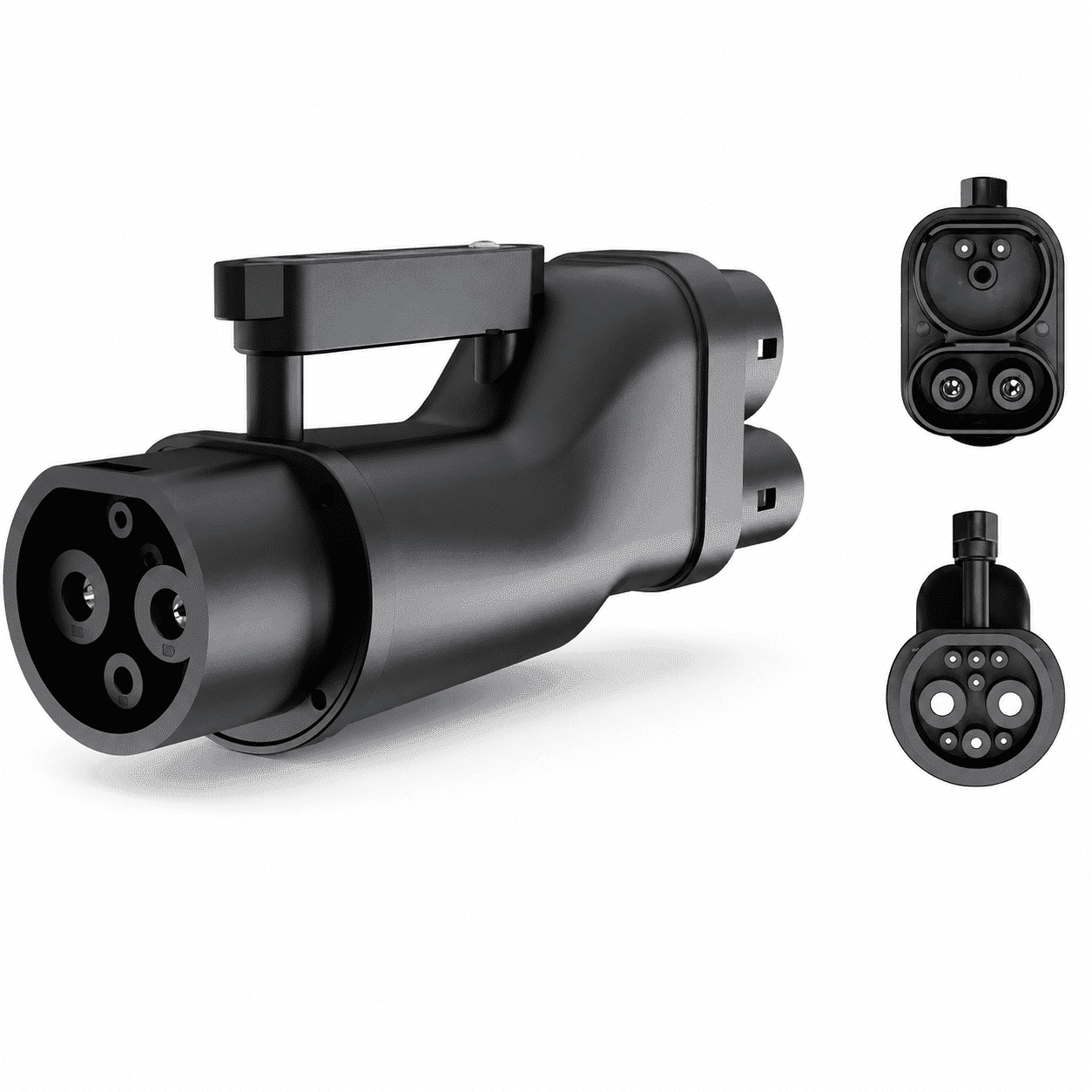

GB/T-CCS1 DC Adapter
- Rated Current: 250A Max
- Rated Voltage: 1000V DC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.43 kg
- Product Size: 283.86 × 94.08 × 153.27 mm
GB/T-NACS DC Adapter
- Rated Current: 250A Max
- Rated Voltage: 1000V AC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 1.78 kg
- Product Size: 305 × 98 × 142.77 mm
GB/T-J1772 AC Adapter
- Rated Current: 32A
- Rated Voltage: 250V AC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.36 kg
- Product Size: 159.94 × 69.48 × 69.13 mm

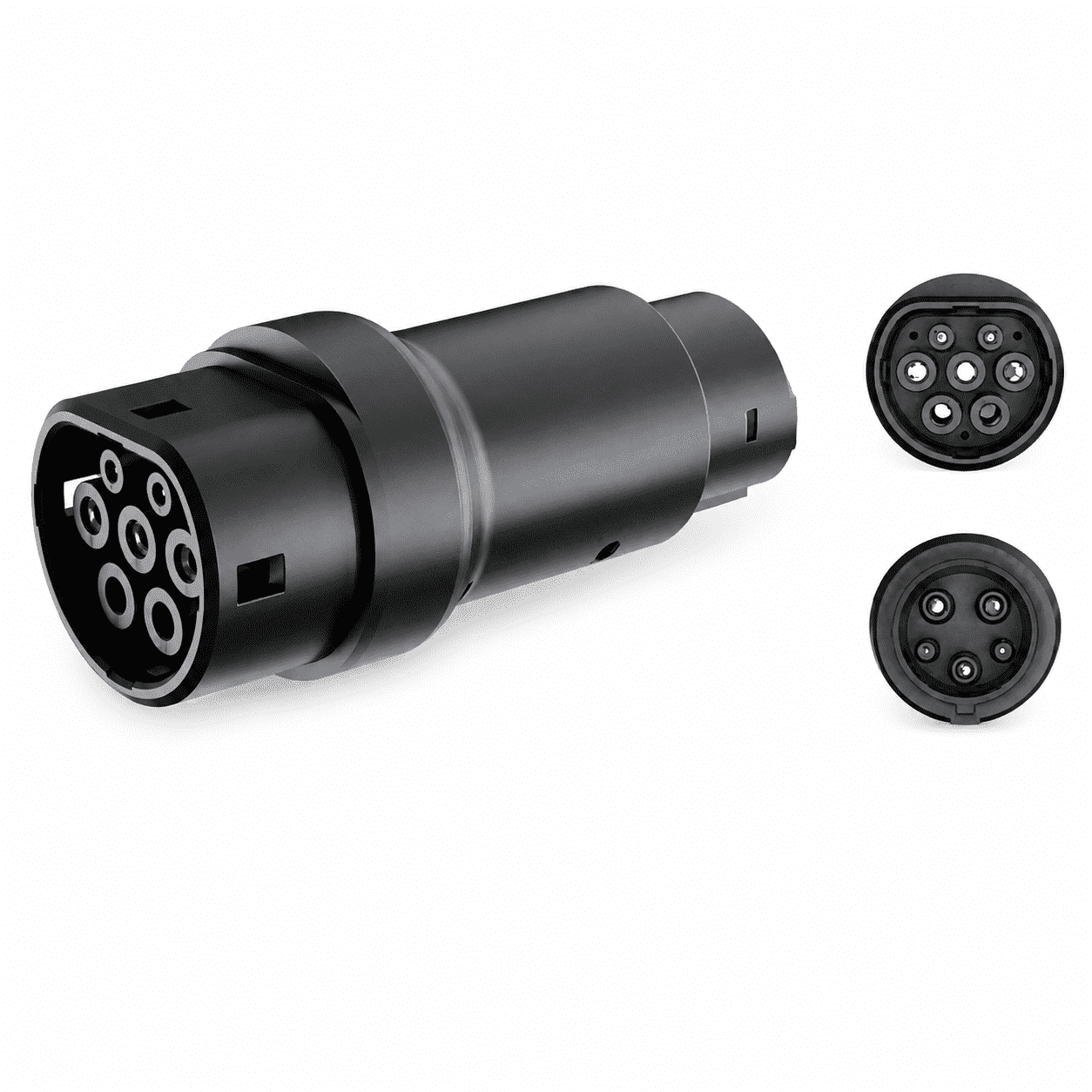

GB/T-TYPE 2 AC Adapter
- Rated Current: 32A Max
- Rated Voltage: 250V AC Max / 380V AC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.49 kg
- Product Size: 176 × 69.5 × 62.65 mm
GB/T-NACS AC Adapter
- Rated Current: 32A
- Rated Voltage: 240V AC
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Size: 155.1 × 69.5 × 63.3 mm

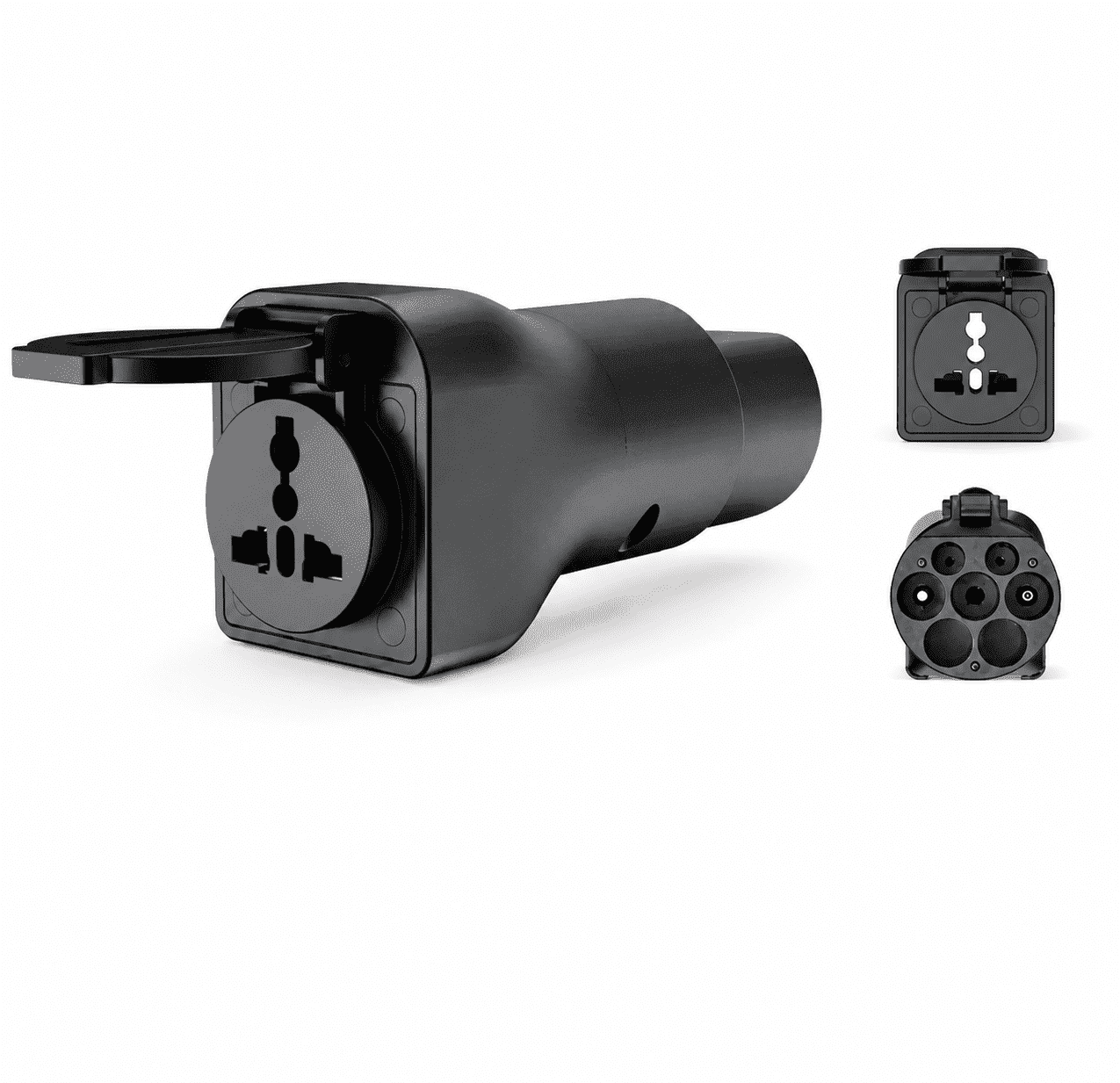

GB/T V2L Adapter
- Rated Current: 16A Max
- Rated Voltage: 220V AC Max
- Waterproof Grade: IP54 (after mating)
- Plastic Shell: Thermoplastic Plastic
- Conductor: Copper alloy, silver-plated surface
- Working Environment Temperature: -30°C to +50°C
- Product Net Weight: 0.3 kg
- Product Size: 145.1 × 57.2 × 69.8 mm
Compare All 7 GB/T Adapter Models
Model
GB/T–CCS2 DC
GB/T–CCS1 DC
GB/T–NACS DC
GB/T–J1772 AC
GB/T–Type 2 AC
GB/T–NACS AC
GB/T V2L
Rated Current
250A Max
250A Max
250A Max
32A
32A Max
32A
16A Max
Rated Voltage
1000V DC Max
1000V DC Max
1000V AC
250V AC Max
250V AC Max / 380V AC
240V AC
220V AC Max
Waterproof Grade
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
IP54 (after mating)
Plastic Shell
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Thermoplastic plastic
Conductor
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Copper alloy, silver-plated surface
Working Temp.
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
-30°C to +50°C
Net Weight
1.5 kg
1.43 kg
1.78 kg
0.36 kg
0.49 kg
Not specified
0.3 kg
Product Dimensions
290.5 × 77 × 133.01 mm
283.86 × 94.08 × 153.27 mm
305 × 98 × 142.77 mm
159.94 × 69.48 × 69.13 mm
176 × 69.5 × 62.65 mm
155.1 × 69.5 × 63.3 mm
145.1 × 57.2 × 69.8 mm
Suitable for Various Charging Scenarios
Tesla / NACS Vehicles
Public Charging Stations
Fleet & Commercial Use
Cross-Standard Compatibility
Custom Charging Adapter Solutions
Frequently Asked Questions
Adapter configurations are available for NACS, CCS1, CCS2, GB/T and CHAdeMO. Actual compatibility depends on the specific adapter model and the vehicle and charger interfaces.
Selected models support both DC and AC charging; other models are designed for DC only. Please check the exact model specification before ordering.
The products use thermoplastic housings and copper alloy contacts with a silver-plated surface, according to the product specifications. Match electrical ratings to your vehicle and charging equipment.
IP54 indicates protection against limited dust ingress and water splashes under the applicable test conditions. Product specifications state IP54 after mating.
Yes. Contact us to discuss OEM/ODM project requirements, adapter configuration and branding options.
Typical applications include compatible EV charging at homes, public charging stations, commercial fleets and cross-standard charging infrastructure.
